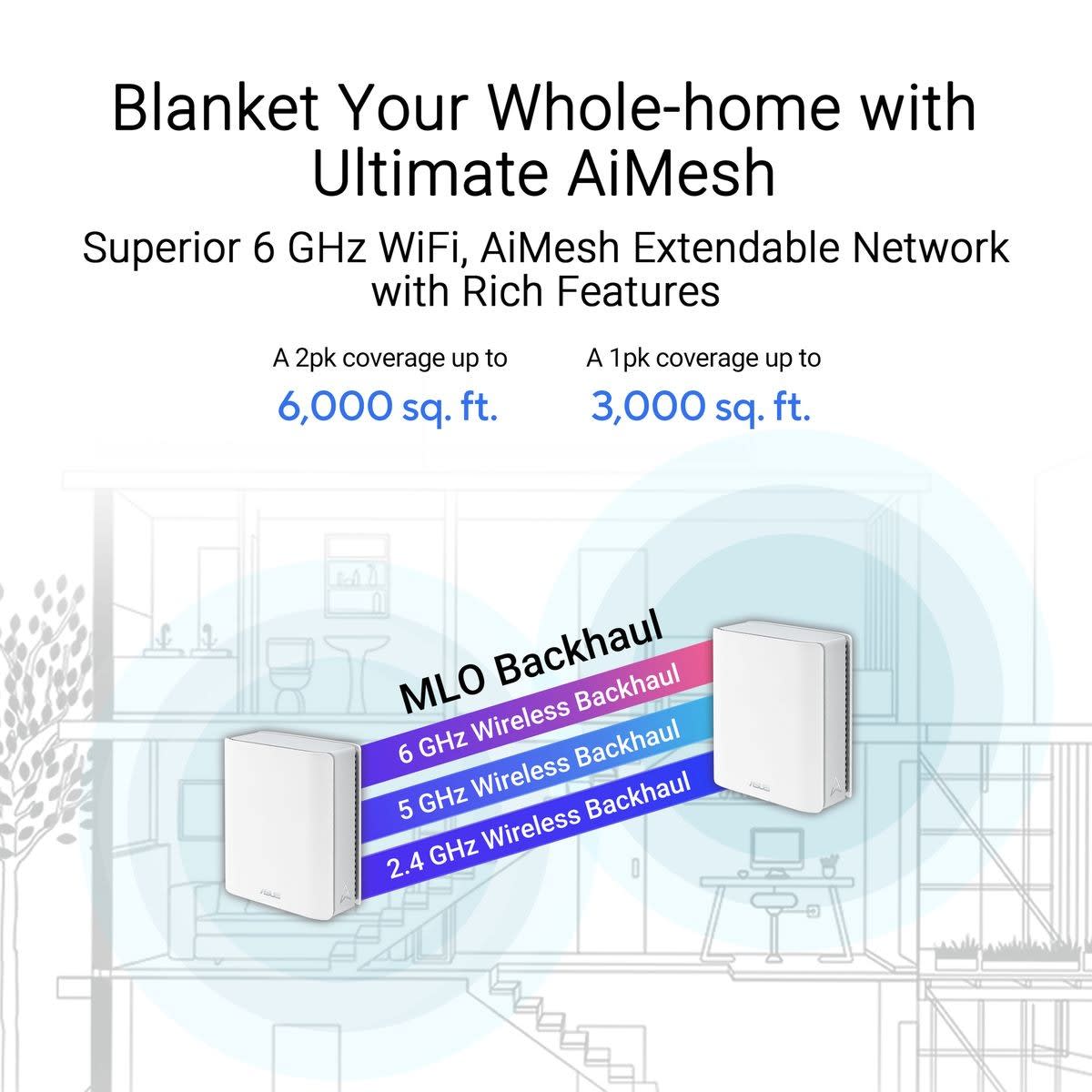

The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT10 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 18 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 10-gigabit Ethernet ports and a suite of advanced network and security technologies, this mesh WiFi system is ready for the future of your smart home network today.

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

WiFi Data Rate

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 4323 Mbps
WiFi 7 (802.11be) (6GHz): up to 8643 Mbps

Antenna

Internal antennas x 8

Transmit / Receive

2.4GHz 2×2
5GHz 4×4
6GHz 4×4

Processor

2.0GHz quad-core processor

Memory

RAM 2GB , Flash 256MB

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz
5 GHz
6 GHz

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Access Point Mode

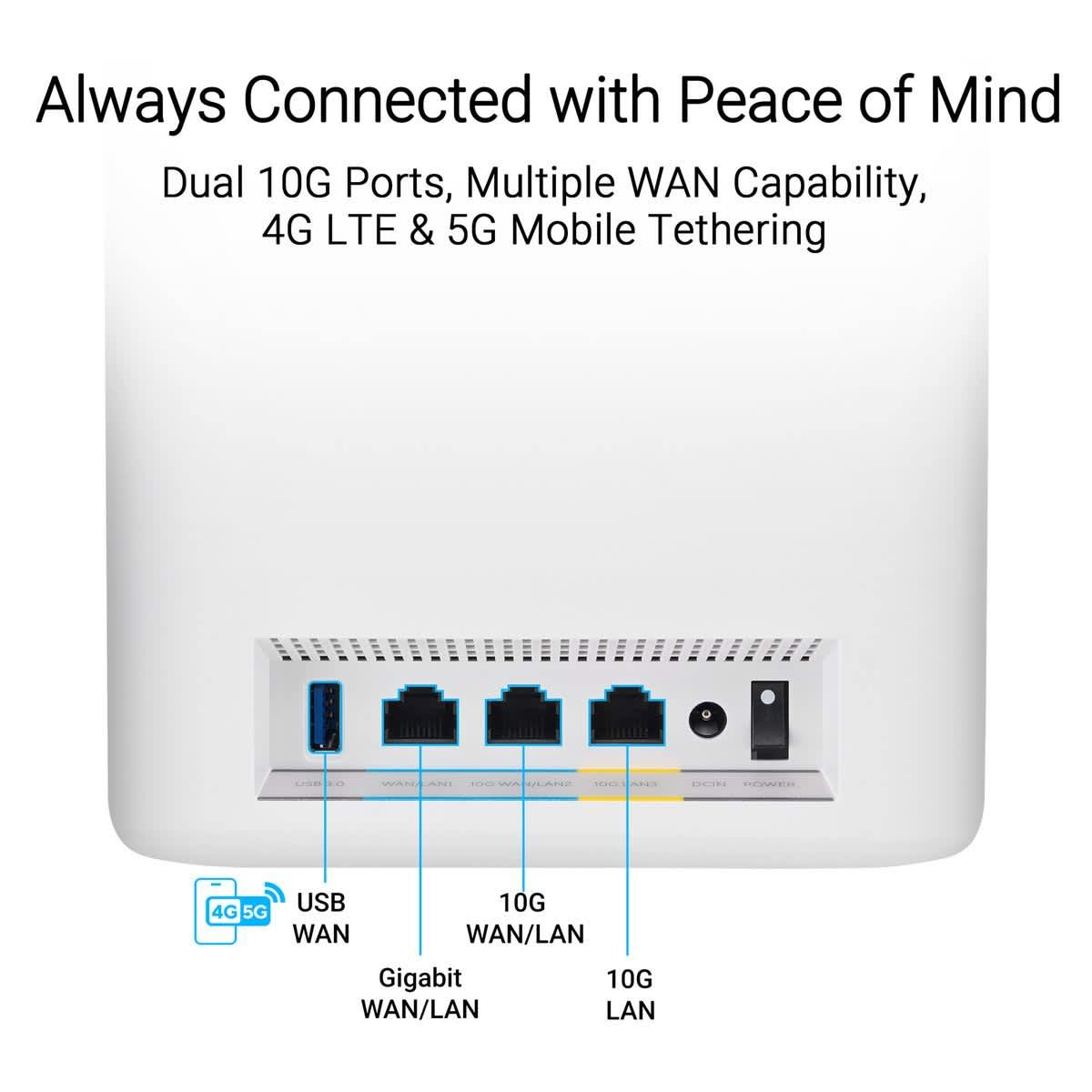

I/O Ports

10G WAN/LAN x 1
10G LAN x 1
1G WAN/LAN x 1
USB 3.0 x1

Buttons

WPS button, Reset button, Power switch

LED Indicator

Power x 1What’s in the box

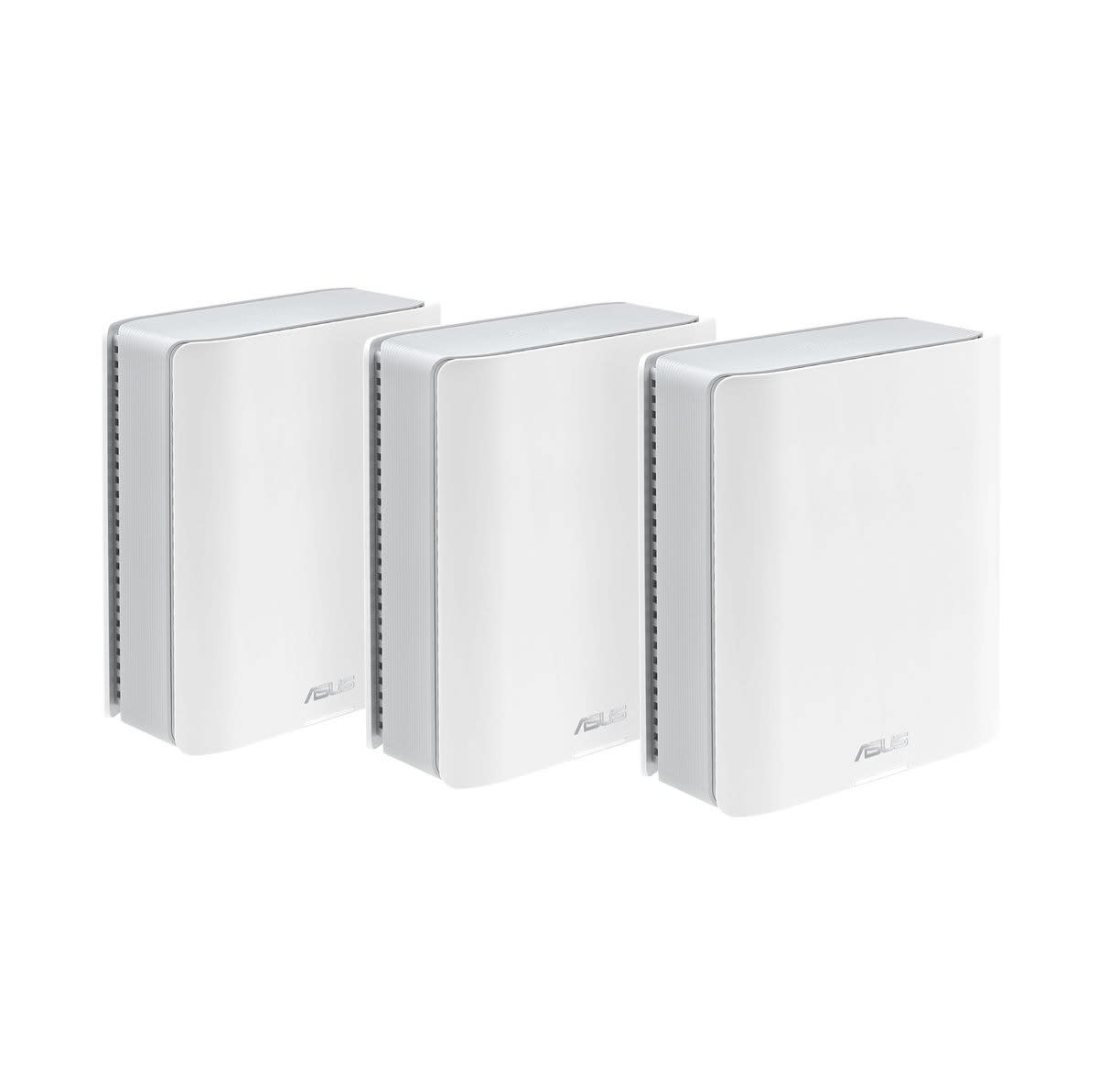

3 x ZenWiFi BT10 x3
1 x RJ45 cable
1 x Power adapter
1 x Warranty card
1 x Quick start guide
