Calibration:
Accuracy: +/- 4% FS
Repeatability: 0.25% FS

Materials:
Body: Acrylonitrilestyrene
Float/Guide: Plastic / 316L Stainless Steel
Connectors: UPVC union adapter socket

Operating Limits:
Max pressure: 6 bar
Max temp: 60 degC
Minimum flow: 250 LPH
Maximum flow: 2500 LPH

Dimensions:
32mm PVC socket connection (PVC solvent/glue)
234mm long with stainless steel guide
Outside diameter: 60mm

Instructions:
Install in a vertical orientation.
No elbows or valves immediately before or after flow meter as this will effect accuracy.
Read flow rate level with top of float.
Open unions as required to clean barrel of meter. Take note when diassembing to ensure correct reassembly.What’s in the box

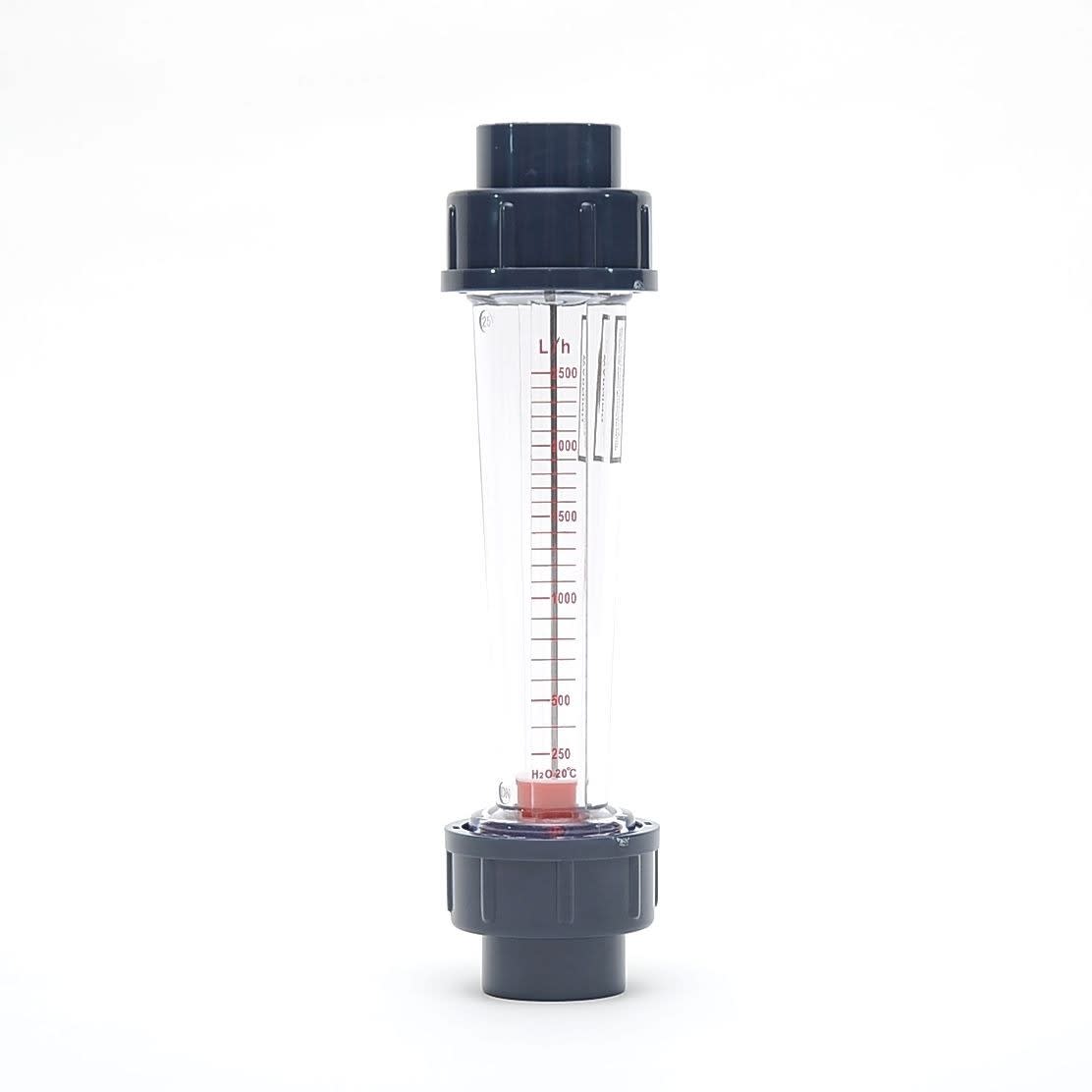

1 x Rotameter
