The Nextion NX4832T035 is a 3.5-inch HMI TFT LCD touch display module designed for embedded electronics, automation and interface projects.

It combines a 480 x 320 colour TFT screen with an integrated resistive touch panel, onboard processor and memory. Communication with a host device is handled through a simple TTL serial interface, making it suitable for compatible microcontroller, Arduino, Raspberry Pi and other embedded-system projects.

Features:

• Model: NX4832T035
• 3.5-inch TFT LCD display
• 480 x 320 resolution
• 4-wire resistive touch panel
• 65K colour display
• 48MHz onboard MCU
• 16MB flash memory
• Approximately 3.5KB SRAM
• 4-pin TTL serial interface
• MicroSD support for firmware or project updates
• Adjustable display brightness
• Recommended 5V DC power supply
• Suitable for compatible embedded electronics and HMI projects

What’s in the Box:

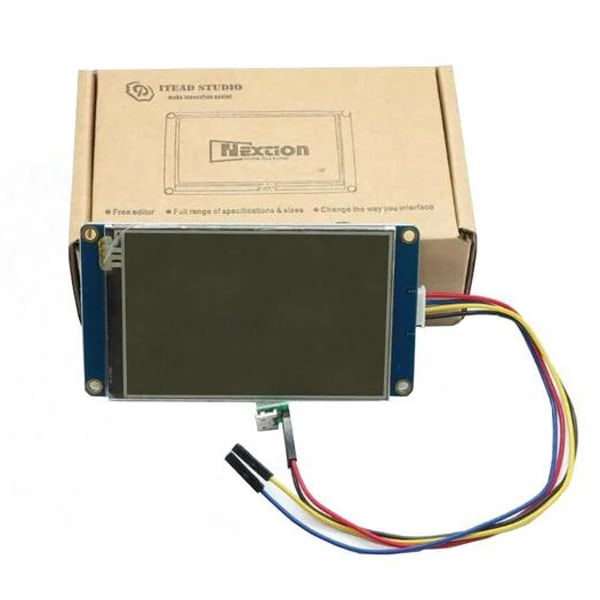

• 1 x Nextion NX4832T035 3.5-Inch HMI Touch Display
• 1 x Micro USB to 2-Pin Connector Board
• 1 x 4-Pin Connection Cable
