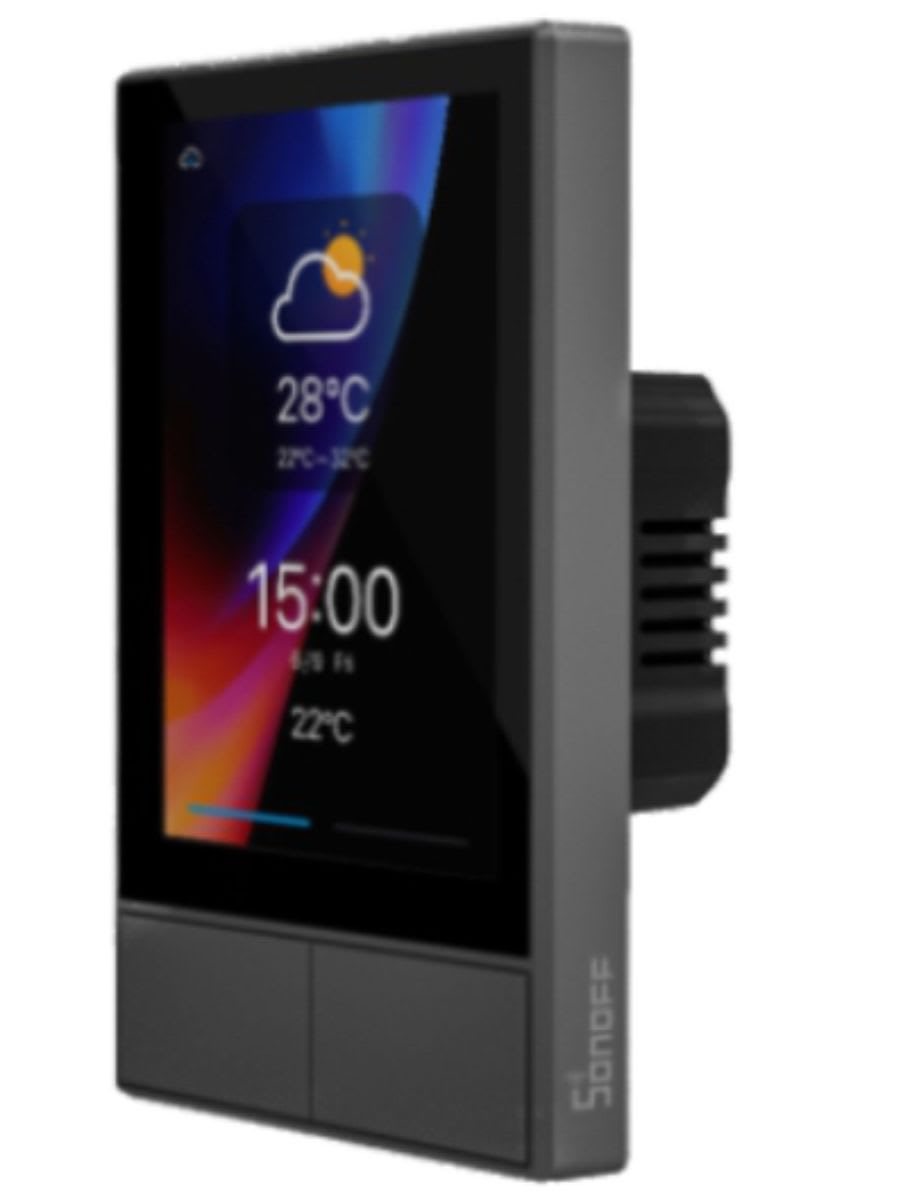

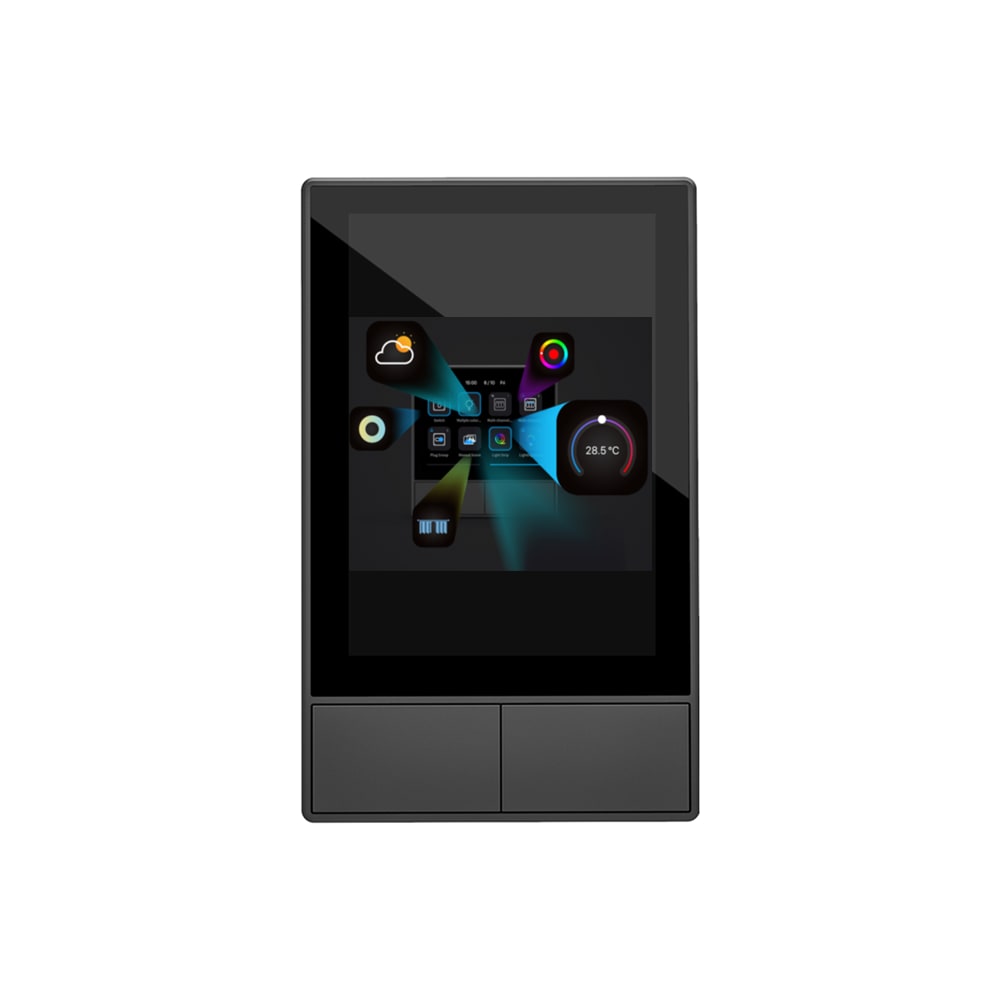

Sonoff NSPanel is a WiFi smart pannel-that can help you achieve the use of specific scene modes in different scenes with one tap. In addition to the scenario-based control, it is compatible with almost all sonoff devices and the central control function of the control group.

SONOFF NSPanel centrally integrates HMI control, smart temperature control, and smart wall switch, turning your home into a convenient and smart place.

With a built-in powerful thermostat, you can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger the heating or cooling equipment according to your setting conditions to keep the room at a comfortable temperature.

You can use the dual-channel switches, touchscreen, and eWeLink App to control SONOFF NSPanel; Besides, SONOFF NSPanel supports Alexa, Alice, Google Assistant, and even Siri Shortcuts, you can control your home appliances with simple voice control.

With built-in sensors and WiFi connection, NSPanel smart scene wall switch can real-time updates weather, indoor temperature, outdoor temperature, time, and date.

Requiers a neutral and a certified electrician to install

Input

100-240V~ 50/60Hz 4A Max

Output

100-240V~ 50/60Hz 2A/Gang 4A/Total

LED Load

300W/220V/Gang, 600W/220V/Total

Wi-Fi

IEEE 802.11 b/g/n 2.4GHz

Bluetooth Standard

4.2 BLE

TFT Screen Size

3.5″ (Capacitive Touch Panel)

Screen Resolution

480x320px

APP Operating Systems

Android & iOS

What’s in the box

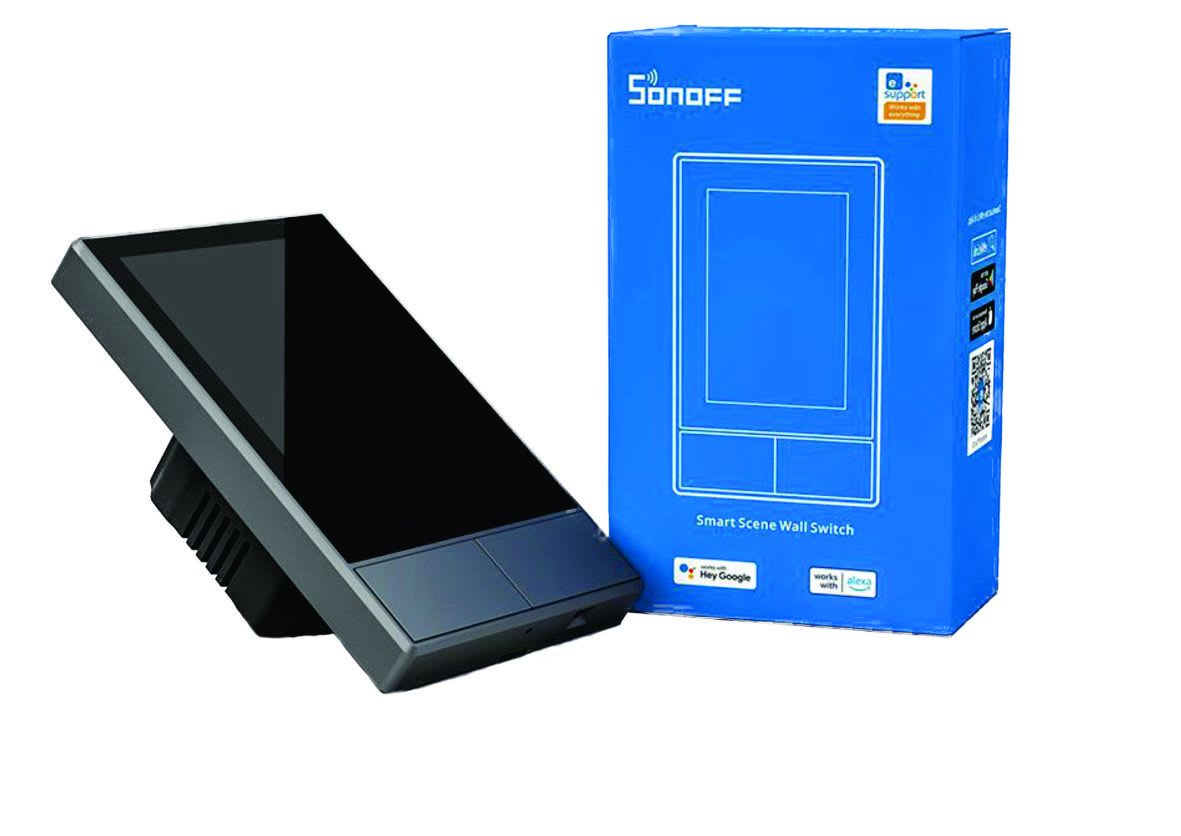

1 X NSPanel-EU/NSPanel-US
2 X Screw
1 X User Manual
