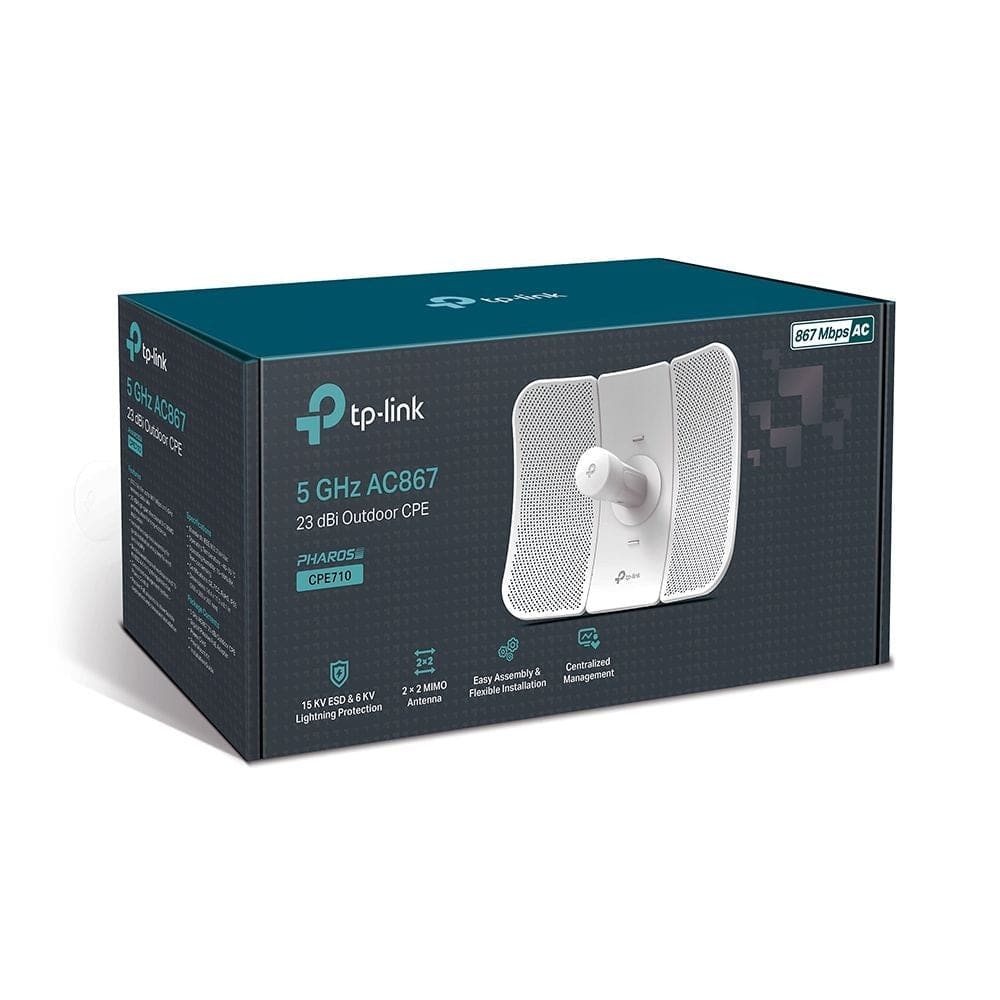

OverviewCPE710 5GHz AC 867Mbps 23dBi Outdoor CPE 802.11ac for up to 867Mbps on 5GHz wireless data rate 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application Excellent beam directivity, improved latency and noise cancellation Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability Pharos Control gives administrators a free, centralized management system Passive PoE supports to allow flexible deployment and convenient installationSpecificationsHARDWARE FEATURESProcessor Qualcomm 750MHz CPU, MIPS 74KcMemory 128 MB DDR2 RAM, 16 MB FlashInterface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)1 Reset ButtonPower Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)Voltage range: 16-27V DCDimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)Antenna Gain 23 dBiAntenna Beamwidth 9 (Azimuth)/7 (Elevation)Protection 15 KV ESD Protection6 KV Lightning ProtectionEnclosure Material: Outdoor PC stabilized plasticWeatherproof: IP65 water and dust proof designWIRELESS FEATURESWireless Standards IEEE 802.11a/n/acWireless Speeds Up to 867 Mbps (80 MHz, Dynamic)Up to 400 Mbps (40 MHz, Dynamic)Up to 173.4 Mbps (20 MHz, Dynamic)Frequency 5.15-5.85 GHzTransmission Power Max. 27 dBm (Adjustable power by 1dBm)SOFTWARE FEATURESNetwork Configuration WAN: Static/ Dynamic/ PPPoELAN: Static/ Dynamic/ DHCPForwarding: ALG/ UPnP/ Virtual Server/ Port TriggerSecurity: SPI Firewall/ Ping Forbidden/ DoS ProtectionAccess ControlStatic RoutingBandwidth ControlIP & MAC BindingWireless Configurations Selectable Channel Width: 20/40/80MHzAuto Channel SelectionTransmit Power ControlDynamic Frequency Selection(DFS)WDS Enable/ DisableSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,SSID Broadcast Enable/ DisableMulti-SSID with VLAN Tagging(AP Mode only)Distance/ ACK Timeout SettingWireless MAC Address FilterWireless Advanced:Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi MultimediaLong Range PtPManagement Features Discovery and Remote Management via Pharos Control applicationHTTP/ HTTPS Web-based managementSystem logSNMP Agent(v2c)Ping Watch DogDynamic DDNSSSH ServerSystem Tools Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ MemoryMonitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCPSpectrum AnalyzerSpeed TestPingTracerouteAntenna AlignmentSystem-level Optimizations Optimized IGMP Snooping / Proxy for multicast applicationsPOE ADAPTER FEATURESDimensions(W x D x H) 85.8×43.9×29.7 mmInterfaces 1 AC Jack with Earth Ground1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)1× 10/100/1000 Mbps Shielded Ethernet Port (Data)Button Remote Reset ButtonPower Status LEDs GreenInput 100-240VAC, 50/60HzOutput 24VDC, 0.5A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)Efficiency >84.29%Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markOTHERSCertification CE, FCC, RoHS, IP65, ICPackage Content Outdoor Wireless CPE24V 0.5A Passive PoE AdapterPole Mounting KitsAC Power CordInstallation GuideSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.Environment Operating Temperature: -40 ~70 (-40 ~158 )Storage Temperature: -40 ~70 (-40 ~158 )Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~95% non-condensingWhat’s in the box
1 x Outdoor Wireless CPE
1 x 24V 0.5A Passive PoE Adapter
1 x Pole Mounting Kits
1 x AC Power Cord
1 x Installation Guide
